Furnace Blower Motor Replacement Cost (NJ 2026): PSC vs ECM, Repairs and Warranty
Replacing a furnace blower motor costs about $300 to $900 for most homes (Filterbuy), and up to $2,300 for a variable-speed ECM motor (HomeGuide). Under warranty, you usually pay only the labor.
Quick answer (checked October 21, 2026)
- Typical total: $300 to $900 installed, with a national average of $560 (Angi).
- By motor type: PSC $500 to $1,400 installed; ECM $800 to $2,300 (HomeGuide).
- Rule out first: a weak run capacitor can mimic a failed motor (Filterbuy). The capacitor part is $10 to $50 and an ECM control module $225 to $815 (Angi).
- Under warranty: the part is usually covered, the labor is not: about $150 to $250 (Modernize).
- New Jersey: HVAC technicians here earn about 20% more an hour than the national average (BLS, May 2025), so local quotes can sit above national averages.
Furnace Blower Motor Replacement Cost at a Glance
Installed price ranges from national cost guides, read October 21, 2026. The bar shows each range on a $0 to $2,500 scale.
- PSC motor, installed$500 - $1,400 (HomeGuide)
- ECM motor, installed$800 - $2,300 (HomeGuide)
- Typical total$300 - $900 (Filterbuy)
- Motor under warranty (labor only)$150 - $250 (Modernize)
National market ranges from HomeGuide, Filterbuy, Modernize and Angi. None is a Dimatic Control quote; your price depends on your furnace, the motor and how easy it is to reach.
What the Blower Motor Does, and Why It Stops Your Heat
In a furnace, the blower motor sits in the base of the unit and powers the fan, the blower wheel or "squirrel cage", that pushes heated air through your ductwork (HomeGuide). If you have central air, the same blower moves your cooled air in summer (Angi).
A weak or dead blower can also shut the heat off. Carrier's troubleshooting guide lists a defective blower motor or capacitor among the causes of status code 33, an open limit switch, which becomes lockout code 13 if the switch stays open longer than three minutes (Carrier).
That is a no-heat call, and in Union County it is a common one: 82.9% of occupied homes here heat with utility gas, against 74.0% statewide (Census, ACS 2024). This guide is for forced-air furnaces, the kind that heat through ducts and vents.
Signs Your Furnace Blower Motor Is Failing
- Weak or no air at the vents while the furnace is running (Modernize).
- A hum or buzz with no airflow. On a PSC motor that often points to the run capacitor, which Filterbuy notes can mimic a failed motor (Filterbuy).
- New noises: rattling, scraping or squealing when the blower starts (Modernize, Filterbuy).
- Higher energy bills from a motor that is struggling (Modernize).
- Heat that starts, then shuts off on a limit or lockout code. Carrier's checks for those codes include a dirty filter, a loose blower wheel and a defective blower motor or capacitor (Carrier). Our code pages explain Carrier code 13, Lennox code 201 and Rheem E1.

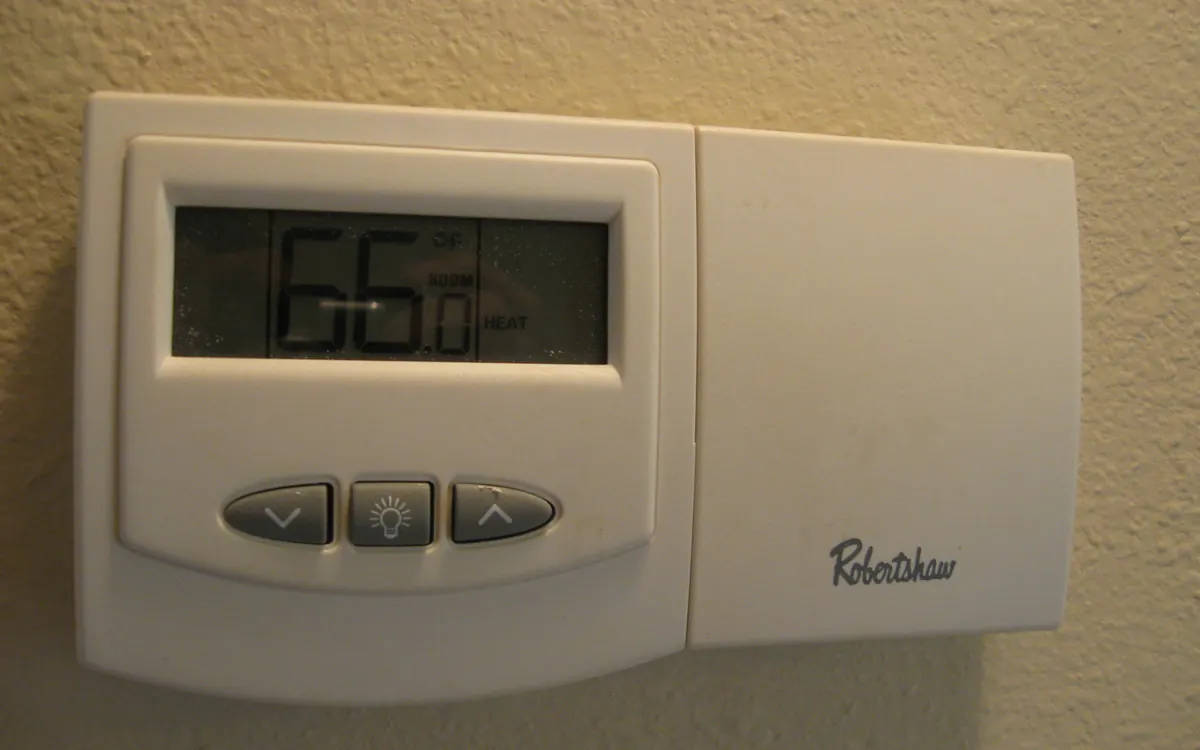

Before you call: check that the furnace switch and breaker are on, the thermostat is set to heat, and the filter is not clogged. If the furnace keeps locking out, stop resetting it and have it looked at; our furnace blowing cold air guide and gas furnace troubleshooting guide cover the other common causes.
From Symptom to Part to Price
The motor is not always the part that failed. Match what you see to the likely part and its published price range:
| What you notice | Likely part | Market range |
|---|---|---|
| Furnace hums, burners light, but little or no air at the vents | Run capacitor (PSC motors) or a seized motor | Capacitor part $10-$50; full motor $500-$1,400 installedAngi (capacitor part), HomeGuide (PSC installed) |
| Newer variable-speed furnace, blower dead or stuck at one speed | ECM control module, or the whole ECM motor | Module $225-$815; full ECM motor $800-$2,300 installedAngi (ECM module), HomeGuide (ECM installed) |
| Rattling, scraping or wobbling while the blower runs | Loose or damaged blower wheel, worn bearings | Wheel $100-$400 installed; bearings $20-$175HomeGuide (wheel), Angi (bearings) |
| Furnace heats, then shuts off on a limit code (Carrier 33, then 13) | Airflow problem: dirty filter, loose wheel, weak motor or capacitor | From a filter change up to a full motorCarrier troubleshooting guide lists all of these |
| Motor confirmed dead, out of warranty | Replace the blower motor | $300-$900 typical; up to $2,300-$2,400Filterbuy, HomeGuide, Angi |
Part-only prices exclude labor unless marked installed. Ranges read October 21, 2026; not a Dimatic Control quote.
Cost by Motor Type: PSC vs ECM
The type of motor in your furnace is the biggest price driver.
- PSC (permanent split capacitor): runs at one or a few fixed speeds and uses a capacitor. Common in older and basic furnaces, and cheaper to replace (Filterbuy).
- ECM (electronically commutated motor): built-in electronics adjust speed and torque to demand. HomeGuide says ECM motors use up to 75% less electricity than PSC motors and that most furnaces made today have one (HomeGuide).
A related federal rule: furnace fans in residential furnaces made on and after July 3, 2019 must meet a maximum fan energy rating (10 CFR 430.32(y)). Keep the same motor type and speed as the original; HomeGuide notes that moving from a single-speed to a variable-speed motor means replacing the whole system.
| Motor | Market range | Source |
|---|---|---|
| PSC motor, installed | $500 - $1,400 | HomeGuide |
| ECM motor, installed | $800 - $2,300 | HomeGuide |
| PSC motor, part only | $350 - $800 | Angi |
| ECM motor, part only | $600 - $1,150 | Angi |
| Single-speed motor | $300 - $900 | Angi, Modernize |
| Two-stage motor | $320 - $1,100 | Angi |
| Variable-speed motor | $600 - $1,500 | Angi, Modernize |
By horsepower. Most home blower motors are 1/4, 1/3 or 1/2 horsepower. Bigger motors cost more, while the labor stays about the same (Angi):
| Motor size | Average cost (Angi) |
|---|---|
| 1/4 hp | $100 - $550 |
| 1/3 hp | $100 - $800 |
| 1/2 hp | $120 - $1,000 |
| 3/4 hp | $175 - $1,500 |
| 1 hp | $250 - $2,000 |
By brand. Modernize lists blower motor prices of $100 to $1,600 for Carrier, $150 to $1,500 for Lennox, $250 to $900 for Rheem, $180 to $1,750 for Trane and $140 to $1,800 for York (Modernize). A brand-matched motor protects compatibility and any warranty still in force.
Labor: What You Pay For, and Why New Jersey Runs Higher
| Labor item | Market range | Source |
|---|---|---|
| Hourly rate | $75 - $150 an hour | HomeGuide; Angi says $75 - $125 |
| Time on the job | 2 - 3 hours | HomeGuide, Modernize; Angi says 1.5 - 2.5 |
| Labor for the swap | $150 - $400 | Angi $150 - $250; Modernize $200 - $400; Filterbuy $150 - $400 |
| Service call to diagnose | $75 - $200 | HomeGuide; some companies credit it to the repair |
| After-hours or emergency | +$100 - $200, or up to 2.5x the rate | Filterbuy; Modernize |
Labor covers more than the swap: confirming the motor is really the problem, shutting off power, taking the blower assembly out, matching and wiring the new motor, and testing airflow and the full heating cycle (Filterbuy). Tight closets, attics and crawlspaces add time (HomeGuide).
The New Jersey difference. The national cost guides above are averages. New Jersey's HVAC mechanics and installers earned a mean of $37.30 an hour in May 2025, against $31.14 nationally, about 20% more (BLS New Jersey, BLS national). In the New York-Newark-Jersey City metro area the mean was $38.33. Those are wages, not what a company bills, but they are one reason New Jersey quotes can land toward the upper half of national ranges.
Timing matters too. After-hours, weekend and holiday labor can run up to 2.5 times the regular rate (Modernize). If the house is safe and warm enough to wait, a weekday visit costs less. If it is not, call; a cold night with no heat is not worth the savings.
Rule Out the Cheaper Repairs First
- Run capacitor (PSC motors): $10 to $50 for the part (Angi). A weak capacitor can look like a dead motor, and Filterbuy recommends replacing a weak capacitor along with a new PSC motor because a failing one can stress the new motor (Filterbuy).
- ECM control module: $225 to $815 for the module (Angi), against $800 to $2,300 for a whole ECM motor installed.
- Blower wheel: $100 to $400 installed, often from dirt buildup (HomeGuide).
- Bearings, belt or housing: bearings $20 to $175, belts $5 to $100, housing $95 to $300 (Angi).
Ask for these before you approve a new motor:
- What test showed the motor failed, and not the capacitor or board.
- The motor type (PSC or ECM), horsepower and part number.
- Whether the motor is OEM or a universal replacement.
- The furnace's model, serial number and a warranty lookup.
- A written price split into part and labor.
Warranty: The Part Is Often Covered, the Labor Usually Is Not
Most manufacturer warranties cover the replacement part but not the labor (HomeGuide). With a covered motor, the bill drops to labor: about $150 according to Angi, or $150 to $250 according to Modernize.
Registration decides how long that coverage lasts. Carrier, for example: register within 90 days of installation and you choose 10 years of parts coverage, or 5 years of parts plus 3 years of labor through a participating dealer. Miss the window and the standard 5 years of parts coverage applies, with no labor (Carrier). Other brands set their own terms, so check yours by serial number.
Our HVAC warranty registration guide for Union County walks through registration and claims. One caution: replacing the motor yourself can void the warranty (HomeGuide).
Can You Replace a Furnace Blower Motor Yourself?
Some homeowners do. Angi estimates $350 to $1,150 for the motor alone, which can save the labor, but it warns that the bigger risk is buying a motor when the real problem was elsewhere (Angi). The job means shutting off power and gas, pulling the blower assembly, matching rotation, speed taps and horsepower, and rewiring it correctly.
In New Jersey, HVACR work requires a state license unless an exemption applies (N.J.S.A. 45:16A-7, NJ HVACR Board). If you hire it out, ask for the license number.
Repair the Motor or Replace the Furnace?
A blower motor lasts 10 to 20 years (HomeGuide, Angi). On a furnace with years left and no other big problems, a new motor is usually the better buy. Filterbuy's advice is that if the furnace is older and has several major issues, the money may be better spent on a replacement (Filterbuy).
To weigh it, read how long furnaces last in NJ and our furnace replacement cost guide for NJ, then ask for both prices in writing.
Make Your Next Blower Motor Last

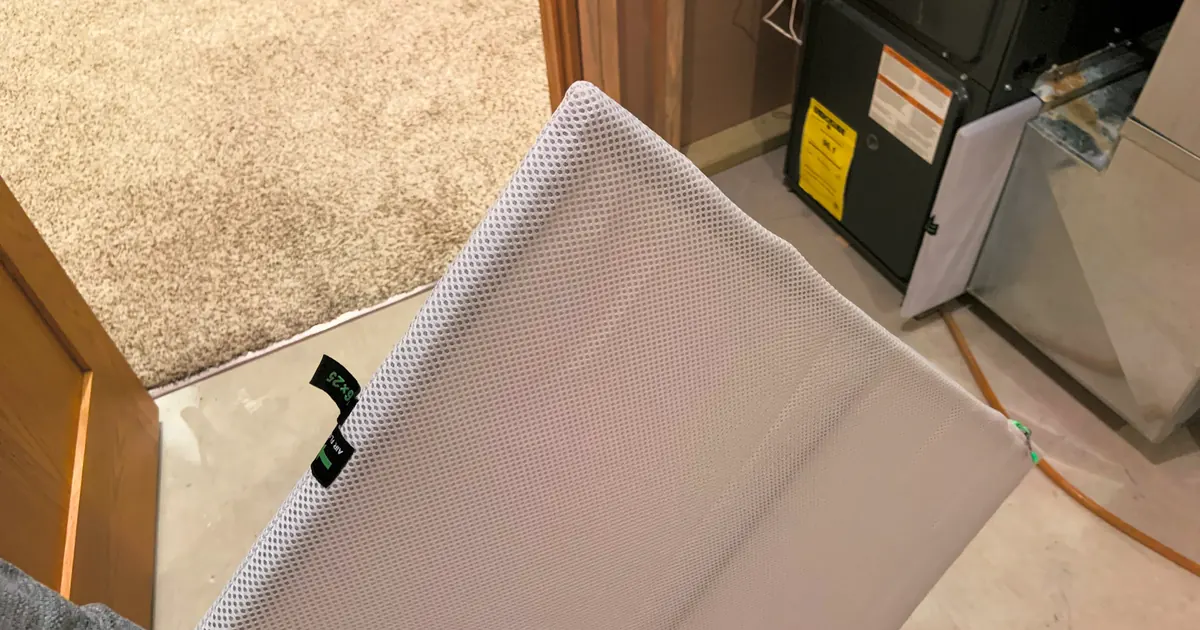

- Check the air filter every month and replace or clean it when dirty; Carrier's furnace maintenance list starts with this (Carrier).
- Have the blower motor and wheel cleaned once a year; Carrier says this should be done by a qualified service technician (Carrier).
- Keep return grilles and supply vents open. Restricted airflow is a common contributor to motor failure (Filterbuy).
- Book a furnace tune-up before the heating season.
Furnace Running but No Air at the Vents?
Dimatic Control provides gas furnace repair across Union County. Call or send a quote request and tell us what the furnace is doing.
Furnace Blower Motor Cost: Frequently Asked Questions
How much does it cost to replace a furnace blower motor?
Most furnace blower motor replacements land between $300 and $900 installed (Filterbuy), with Angi's national average at $560. The motor type sets the range: HomeGuide puts a standard PSC motor at $500 to $1,400 installed and a variable-speed ECM motor at $800 to $2,300. Large or hard-to-reach motors can reach about $2,400 (Angi). If the motor is still under the manufacturer's warranty, you usually pay only labor, about $150 to $250. These are national market ranges read October 21, 2026, not a Dimatic Control quote.
How do I know if my furnace blower motor is bad?
The common signs are weak or no air from the vents while the furnace runs, a humming or buzzing furnace with no airflow, new rattling or scraping noises, higher energy bills, and a furnace that heats and then shuts itself off on a limit code. Carrier's troubleshooting guide lists a defective blower motor or capacitor, a loose blower wheel and a dirty filter among the causes of its limit codes 33 and 13. Those signs can also come from a weak capacitor or a control problem, so the only sure answer is a technician testing the motor, the capacitor and the board.
Can I replace a furnace blower motor myself?
It is possible but risky. You need a replacement that matches the old motor's horsepower, speed (RPM) and voltage, basic hand tools, and the power and gas turned off first. Angi estimates $350 to $1,150 for the motor alone if you do it yourself, but it warns that most of the risk is misdiagnosis: buying a motor when the capacitor or board was the problem. HomeGuide notes that doing it yourself can void your HVAC warranty. In New Jersey, HVACR work for others requires a state license unless an exemption applies (N.J.S.A. 45:16A-7).
How long does a furnace blower motor last?
HomeGuide, Angi and Modernize all put a blower motor's life at 10 to 20 years, depending on how many hours it runs. Regular maintenance helps it last (HomeGuide, Angi); Carrier's furnace maintenance instructions call for checking the filter each month and having the blower wheel and motor cleaned annually.
Is it worth replacing a furnace blower motor, or should I replace the furnace?
On a furnace with years left and no other major problems, a new blower motor at a few hundred to about two thousand dollars is usually the better buy than a new furnace. Filterbuy's advice is that if the furnace is older and has several major issues, the money may be better spent on a replacement. Ask for the furnace's age and the full list of problems before you decide, and price both options.
What is the difference between a PSC and an ECM blower motor?
A PSC (permanent split capacitor) motor runs at one or a few fixed speeds and uses a capacitor; it is cheaper to replace. An ECM (electronically commutated motor) has built-in electronics that adjust speed to demand; HomeGuide says it can use up to 75% less electricity and that most furnaces made today have one. ECM replacements cost more: $800 to $2,300 installed against $500 to $1,400 for a PSC (HomeGuide). Sometimes only the ECM's control module fails, at $225 to $815 for the module (Angi).
Does the warranty cover a furnace blower motor?
Usually the part, rarely the labor. HomeGuide says most manufacturer warranties cover the replacement part but not labor, and Angi puts the labor under warranty at about $150. Coverage often depends on registration: Carrier, for example, gives 10 years of parts coverage (or 5 years parts plus 3 years labor through a participating dealer) when the equipment is registered within 90 days of installation, and only 5 years of parts coverage if it is not.
Is a furnace blower motor the same as the AC fan motor?
The indoor blower is shared: Angi notes the same blower motor pushes both heated and cooled air through the ducts in a system with central air and a furnace. The outdoor condenser fan motor on your AC unit is a different part with its own price, covered in our AC fan motor replacement cost guide.
Sources
Every figure on this page was read from the sources below on October 21, 2026. The "about 20%" wage gap is our own arithmetic from the two BLS figures.
- HomeGuide, blower motor replacement cost (October 14, 2025): $500-$1,400 for a PSC motor and $800-$2,300 for an ECM motor, installed; $75-$150 an hour labor and a $75-$200 service call; 2-3 hours; blower wheel $100-$400; ECM motors use up to 75% less electricity; most furnaces made today have an ECM; warranties usually exclude labor; 10-20 year life.
- Angi, blower motor replacement cost (updated July 9, 2026): $560 average, up to $2,400; about $150 labor under warranty; motor prices by horsepower, type and speed; $75-$125 an hour; capacitor $10-$50, ECM module $225-$815 and other part prices; 10-20 year life.
- Modernize, blower motor replacement cost (updated August 12, 2026): $150-$2,000 range, most pay $550-$650; labor $200-$400 over 2-3 hours; $150-$250 with parts under warranty; after-hours rates up to 2.5 times higher; motor price ranges by brand.
- Filterbuy, furnace blower motor replacement cost (January 22, 2026): $300-$900 typical total; motor alone $50-$450; labor $150-$400; emergency or after-hours service adds $100-$200; a weak capacitor can mimic a failed motor.
- Carrier, gas furnace troubleshooting guide (status codes): Code 33 (limit or roll-out switch open) turns into lockout code 13 after three minutes; the checks include a dirty filter, a loose blower wheel and a defective blower motor or capacitor.
- Carrier, gas furnace service and maintenance instructions (58DXT/58UXT): Check and clean the air filter each month; check the blower motor and wheel for cleanliness each season; a qualified technician cleans the blower wheel and motor annually.
- Carrier, warranty registration and coverage: Registered within 90 days: 10 years parts, or 5 years parts plus 3 years labor through a participating dealer; not registered: 5 years parts only.
- 10 CFR 430.32(y), federal energy standard for residential furnace fans (eCFR): Furnace fans in furnaces manufactured on and after July 3, 2019 must meet a maximum fan energy rating.
- U.S. Bureau of Labor Statistics, OEWS May 2025, HVAC mechanics and installers, New Jersey: Mean wage $37.30 an hour and median $35.79 in New Jersey (10,330 workers); New York-Newark-Jersey City metro mean $38.33.
- U.S. Bureau of Labor Statistics, OEWS May 2025, HVAC mechanics and installers, United States: Mean wage $31.14 an hour and median $29.33 nationally.
- NJ State Board of Examiners of HVACR Contractors, FAQ: N.J.S.A. 45:16A-7: HVACR work requires a state license unless an exemption applies.
- U.S. Census Bureau, American Community Survey 2024 1-year, table B25040 (via Census Reporter): 170,828 of 206,050 occupied Union County homes (82.9%) and 74.0% of New Jersey homes heat with utility gas.
